Industrial Hoses

‌

These have a smooth inside diameter as well as strength and durability. These are light weight and designed for maximum air flow and can be used with wide range of Blowers, Portable Evacuaters, Turbo Ventilators, Fans, Printing Machines and Dryer Machines for both Positive & Negative Pressure. Fire Resistant and Antistatic quality Hoses are available These are Weather Resistant Hoses. The following are Three Types of PVC Hoses which can manufacture from 32mm to 1000mm in 4 to 15M lengths. Withstand temperature of these hoses are -20 Deg.C to +70 Deg.C.

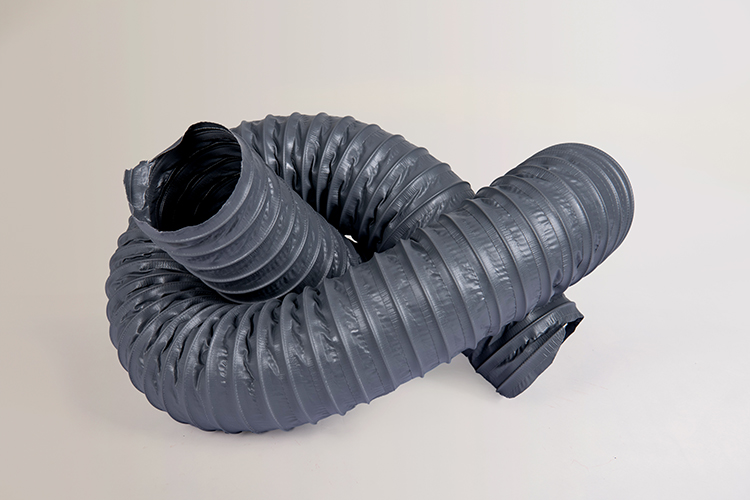

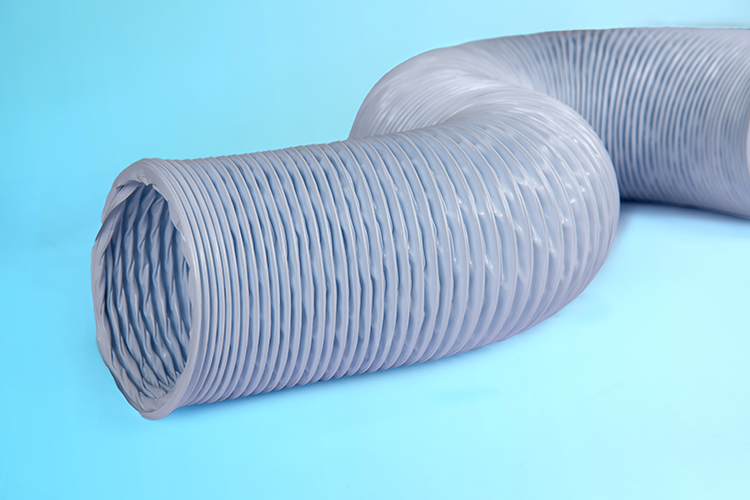

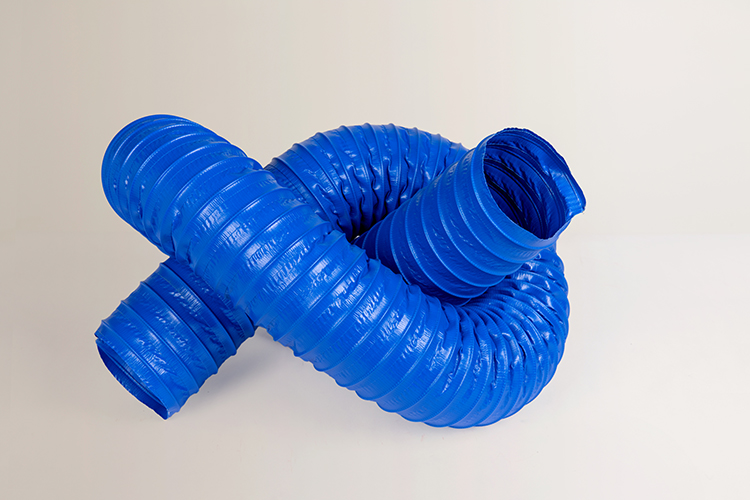

Flexible PVC Hose

TYPE-PFFH : Flexible PVC Hose made with continuous Spring Steel Wire reinforcement Helix between Polyester Fabric Coated with PVC on both sides.

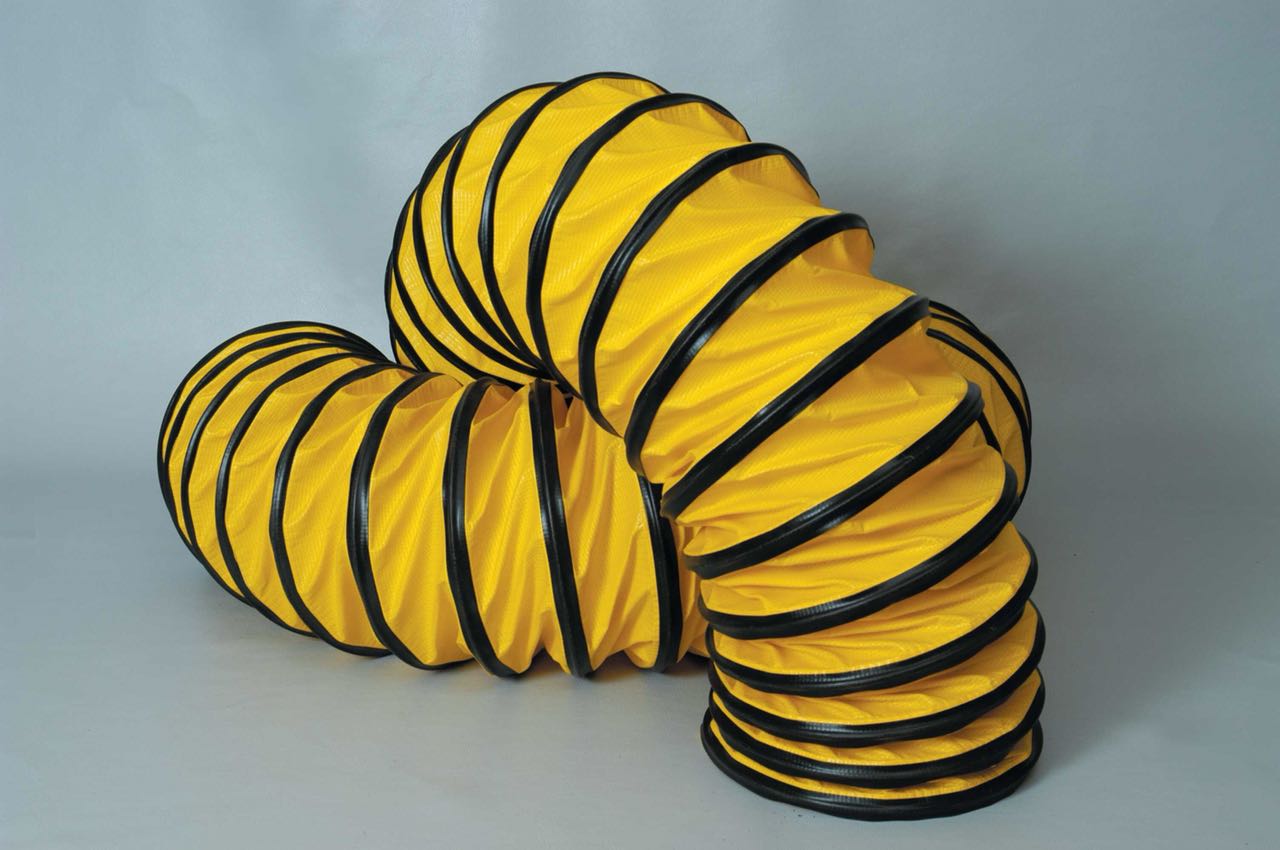

Spiral PVC Hoses

TYPE- PSRH : Spiral PVC Hose made with continuous Spring Steel Wire reinforcement helix on the outer periphery of the hose covered by PVC/ Extruded Wear Strip.

Click Here

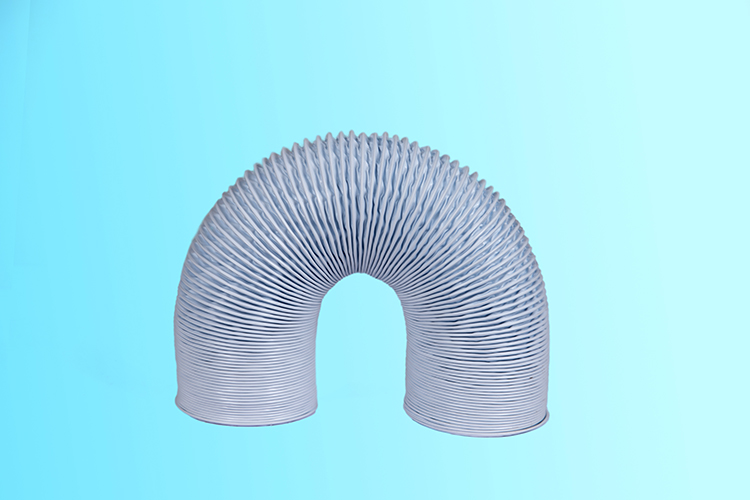

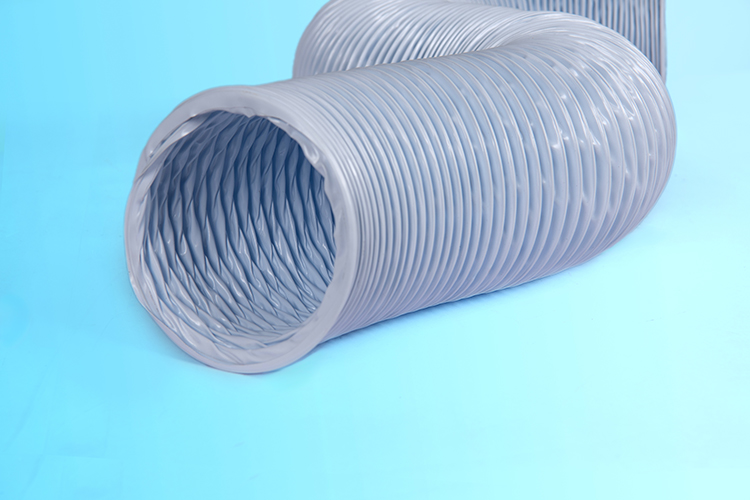

Unsupported Pvc Film Hose

TYPE-UNPH : Flexible Hose Made from UNSUPPORTED PVC FILM (white) with continuous Spring Steel Wire reinforcement Helix between film overlap.

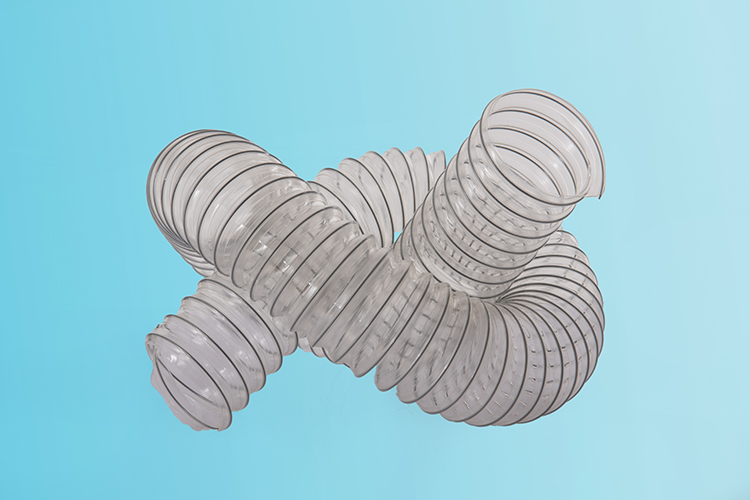

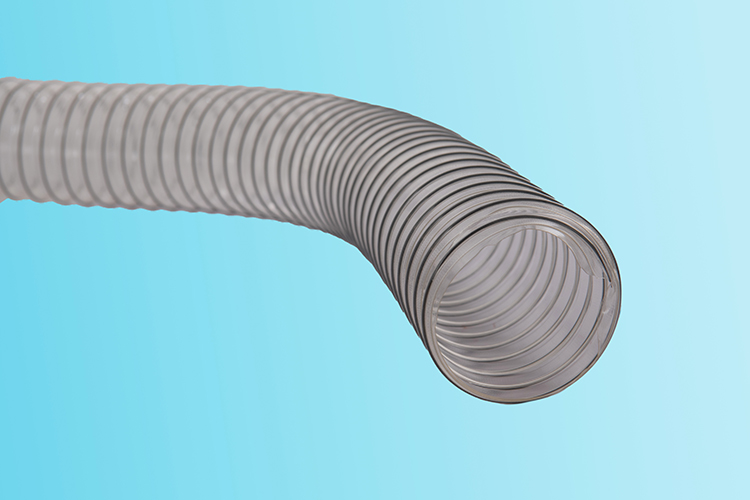

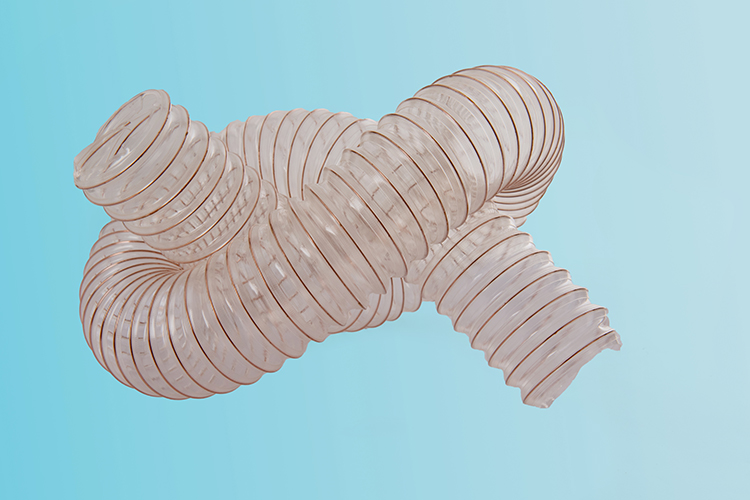

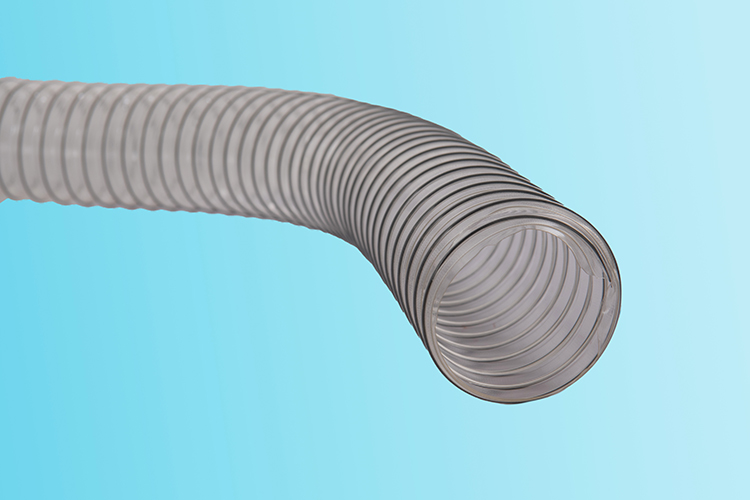

Polyurethane Hose

Available from 32 mm to 600 mm diameter. in 4 to 10 meter. Lengths made with continuous PVC Coated Steel Wire / PVC Wire / Spring Steel Wire reinforcement Helix between PU film overlap. Crystal clear glass like appearance for visual product control. No adhesive or hot melt used in construction, no plasticisers. Good chemical resistance, including certain oils. Superb tear strength. These are durable, light weight and designed for maximum air flow. APPLICATION: Excellent choice for a wide range of applications, including Exhaust, Blowing Ventilation Fume Removal, Wooden / Plastic Particles [Dust], and Highly Abrasive Particles, Toxic Liquids & All pressure application. ANTI STATIC PU Hoses are also available

Click Here

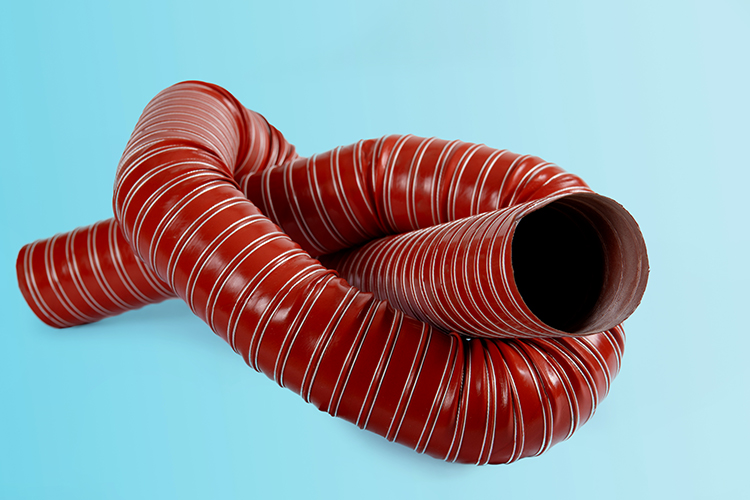

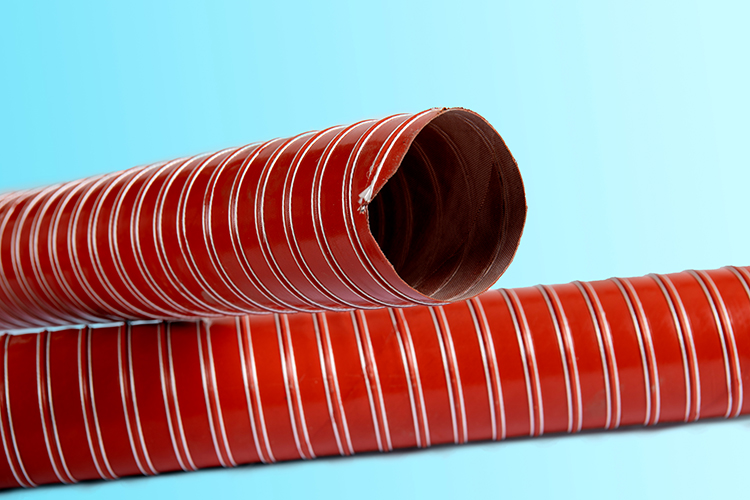

High Temperature Silicone Hose

32 mm to 300 mm dia in 4 - 6Mtrs. Lengths + / - 2% Withstand Temperature: -50C to +310C. Construction: Two Ply Silicone Hose made from Silicon Coated Glass Fibre Fabric, with an embedded Bronze plated Steel Wire helix, outer twin Glass Cord. APPLICATION: Aircraft; Aerospace, Vehicle and Engine Production, Car heating and Hot Dust extraction & designed for Hot & Cold Air / Fume application of both Positive and Negative Pressures

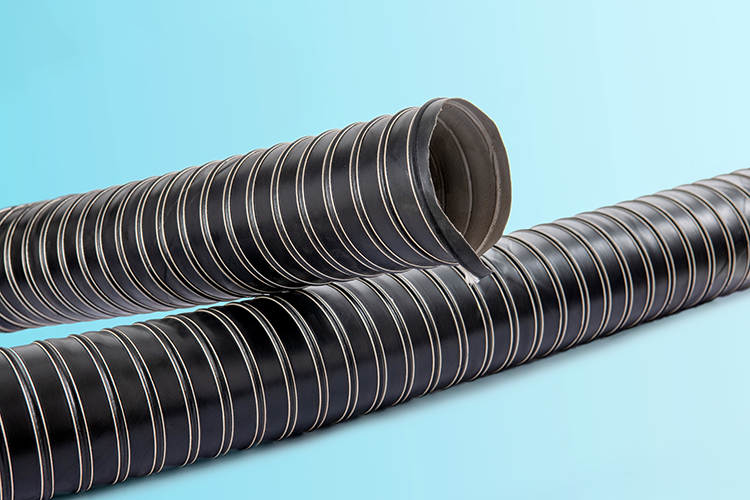

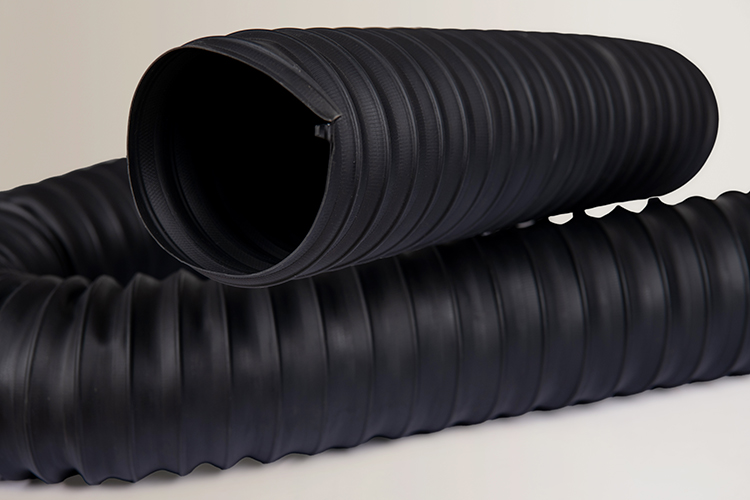

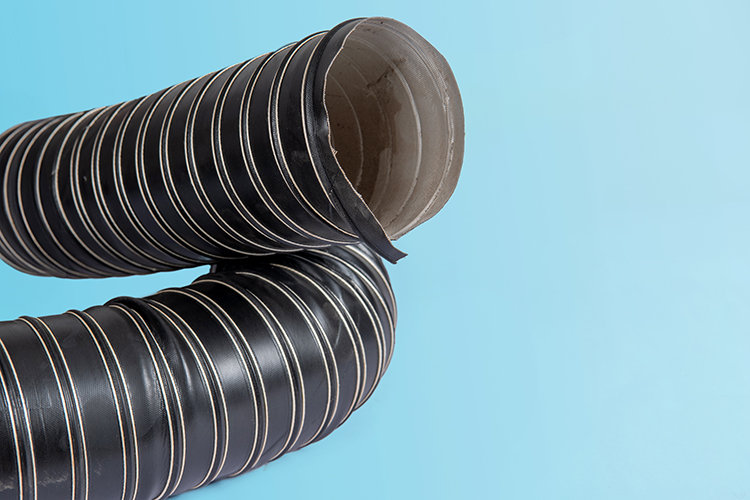

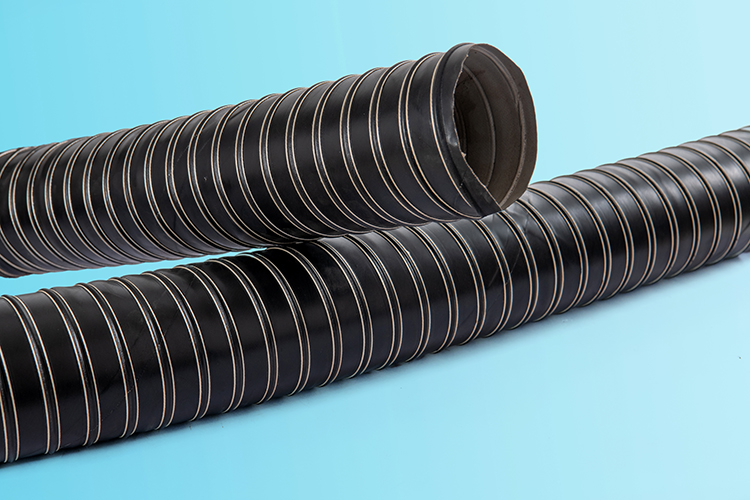

High Temperature Neoprene Hose

38mm to 300mm dia in 4 to 6 Mtrs. Lengths +/- 2%. Withstand Temperature: -50C to + 150C. Construction: Two Ply Neoprene Hose made from Neoprene Coated Glass Fibre Fabric, with an embedded Bronze plated steel wire helix, outer twin glass cord. APPLICATION: Vehicle and Engine production, Aircraft Industry, Ship building, Air Condition, Air, Gas, Fumes & Dust.

Click Here

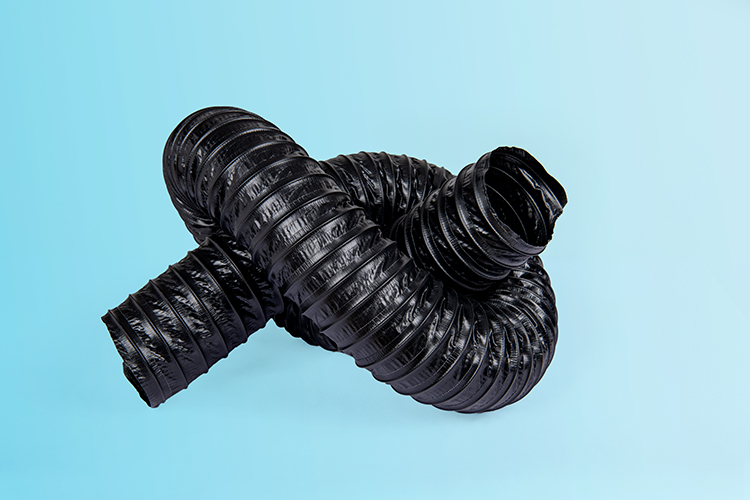

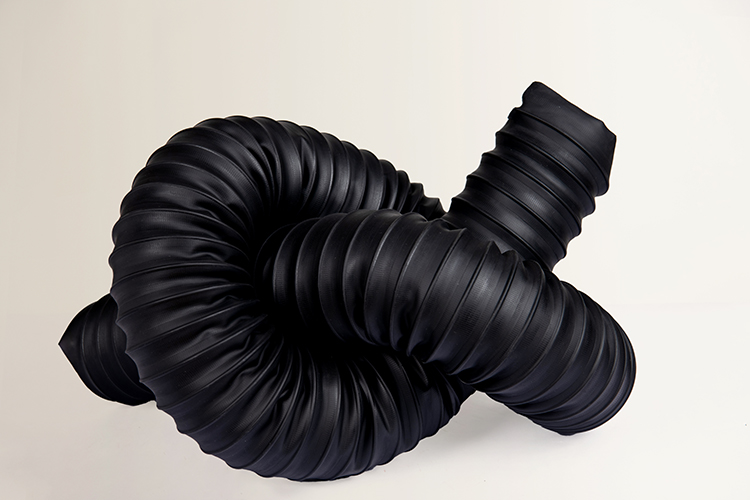

High Temperature Santoprene Hose

50mm to 600mm dia in 4 to Mtrs. Lengths +/- 2% Withstand Temperature: -40C to +130C. Colour : Black. SANTOPRENE Hose made with continuous Spring Steel Wire/PVC .Extruder Reinforcement Helix between Thermo Plastic Rubber is abrasion resistant, holds up extremely well against damage by Weather, Oils & Ozone. No solvents are used in the construction of this product. Santoprene Hose produced by a process that assures a very smooth inside diameter as well as strength and durability. APPLICATION: Excellent choice for a wide range of applications, including Exhaust, Ventilation fume removal and light duty material handling & suitable for use in many different industrial sectors.

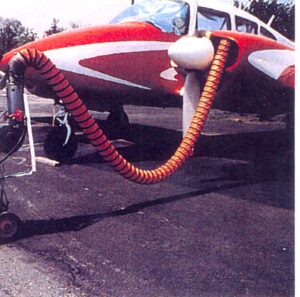

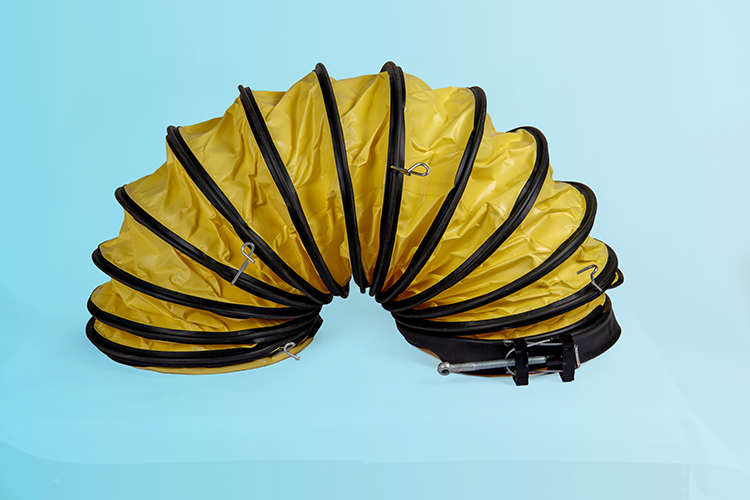

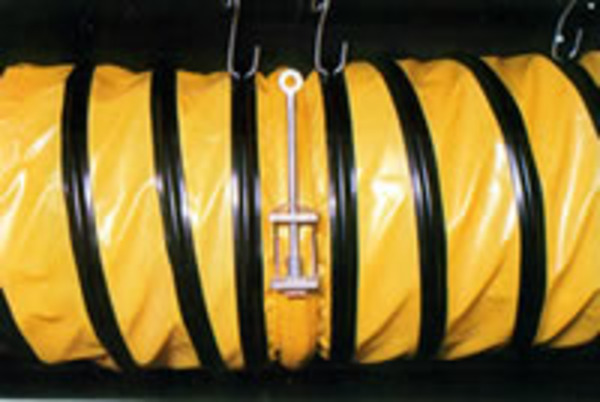

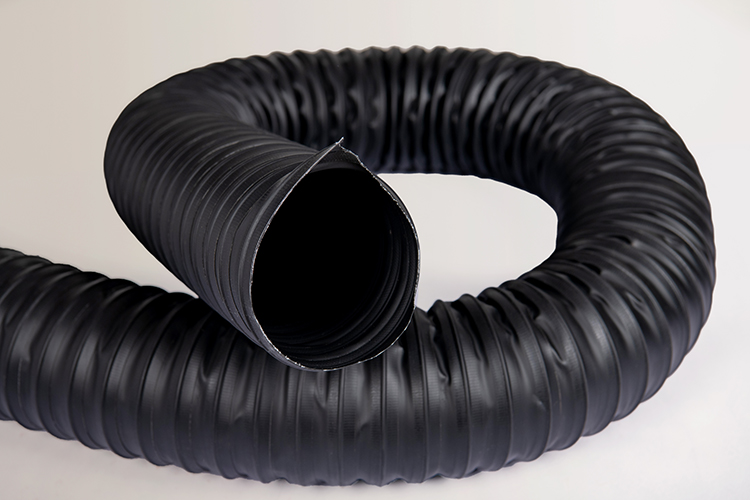

Toilet Cart Dump Hose

75mm to 300mm dia in 4 to 15 Mtrs. Lengths. Withstand Temperature: -20C to + 70C. Two Ply Hose made from Polyester Fabric Coated with PVC on both sides with continuous Spring Steel Wire reinforcement helix on the outer periphery of the hose covered by PVC Extruded Wear Strip. FR quality is also available. Crush Proof: We also manufacture Crush Proof Toilet Dump Cart PU Hose on request. APPLICATION: Air Craft, Railway, Aero space Vehicle and Engine Production, Ship Building Air, Gas, Fumes, Dirt, Dust & Waste removal and operates for both Positive and Negative Pressure.

Click Here

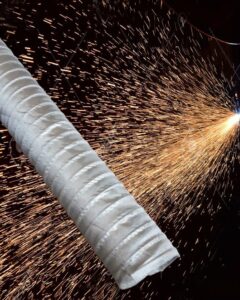

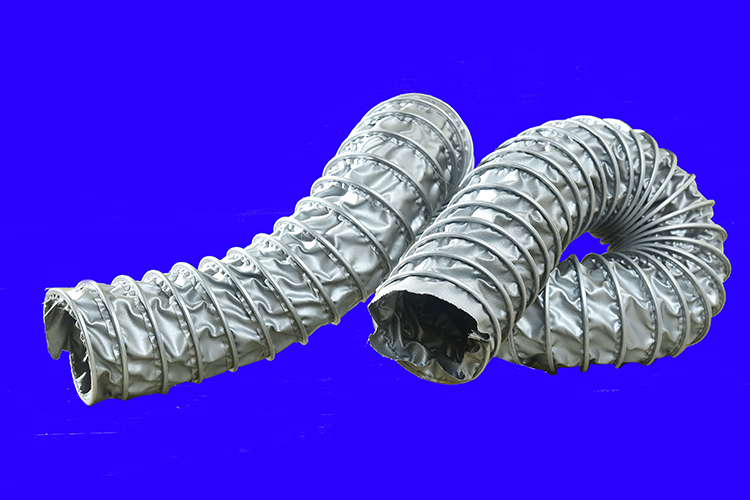

High Temperature Spark Proof Hose

Flexible High Temperature SPARK PROOF Fibreglass Fabric Hose made with continuous SS Wire reinforcement Helix between Neoprene Coated Fibreglass Fabric.
Material : Spark Proof Fibre-glass Fabric With SS Wire.
Fabric Thickness: 0.50mm
Colour : Silver
Temperaure: - 50 to +150 Deg.
Length: 4 to 6 Mtrs.
Diameter: 25mm to 300mm ID 250mm & 300mm dia.
SPARK PROOF Fibreglass fabric Hose made from Fibreglass fabric with an embedded Steel Wire Helix, outer twin glass cord. Suitable for withstand temperature from -50 Deg.C to +150Deg.C.  Wire diameter and pitch [wire to wire] will be vary according to diameter of the hose. We also manufacture hoses as per users sample and specification.  APPLICATION: Ship Building, Aircraft, Aerospace, Vehicle and Engine Production, Car Heating and Hot dust extraction and designed for hot and cold air/fume/Dust application of both Positive and Negative Pressures and can be used where Welding sparks falls.

Click Here

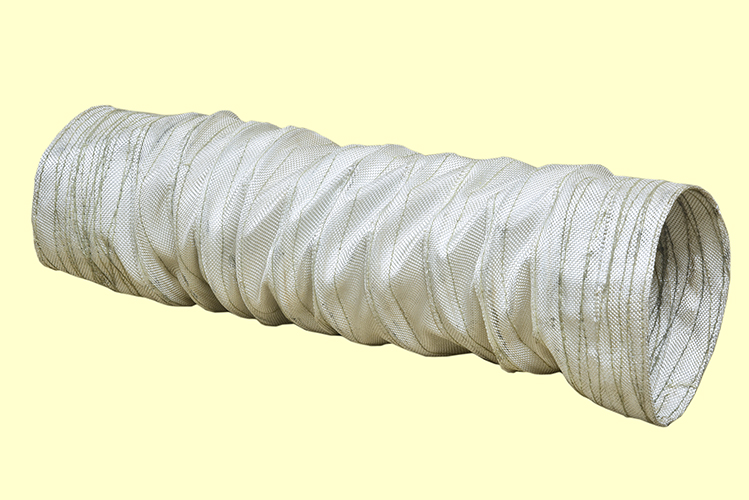

Flexible High Temperature Fabric Hose

Flexible High Temp. Fabric Hose made with continuous SS Wire reinforcement Helix between Two Layers of High temperature Fabric. Material : High Temperature Fabric with SS Wire. Fabric Thickness: 0.70mm Colour : Off White. Length: 4 to 6 Mtrs. Diameter: 102mm to 610mm ID Suitable for withstand Temperature: 500, 600, 700, 800 & 1000 Deg.C.

HIGH TEMPERATURE FABRIC Flexible Hose spirally reinforced with Spring Steel Wire sandwiched between two layers of high temperature fabric with continuous stitching suitable for 800, 900 & 10000C suitable for suction of Engine Exhaust Gas, Air Craft Construction, Military Construction, Blast Furnace Exhaust and Engine Test. Wire diameter and pitch [wire to wire] will be vary according to diameter of the hose. We also manufacture hoses as per users sample and specification. Less storage space required due to excellent compression.

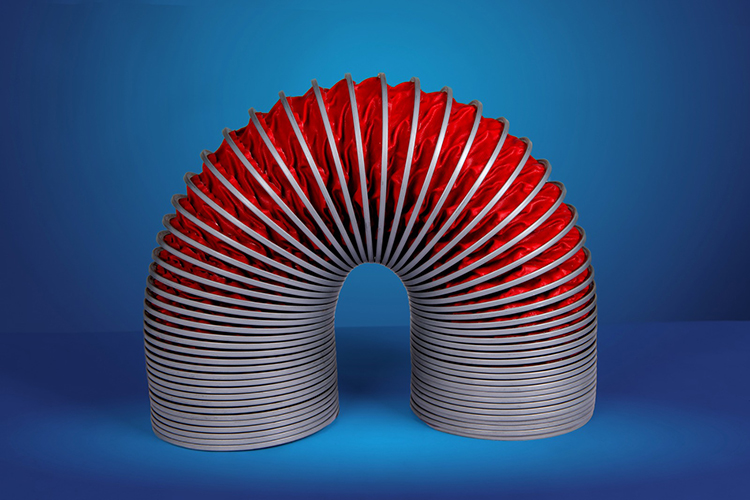

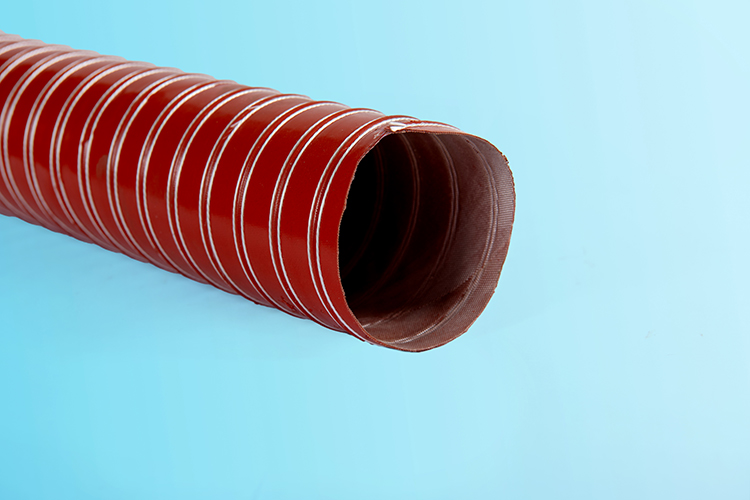

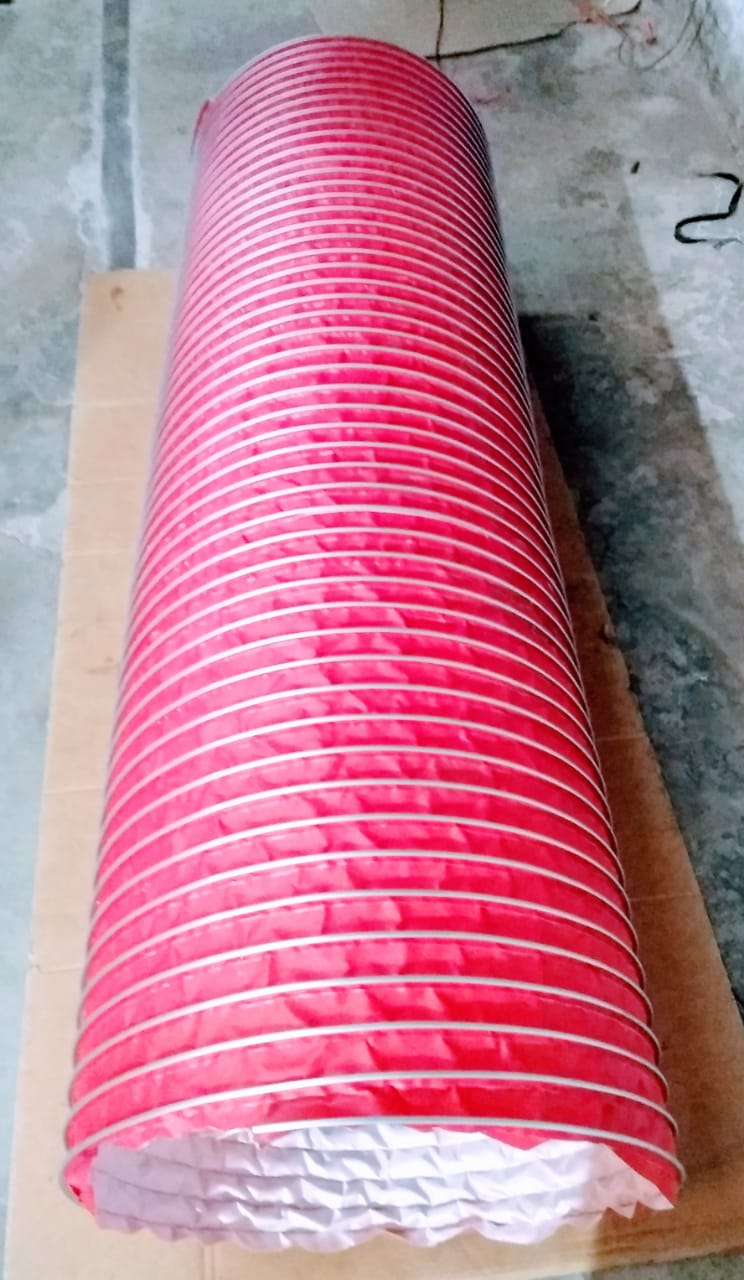

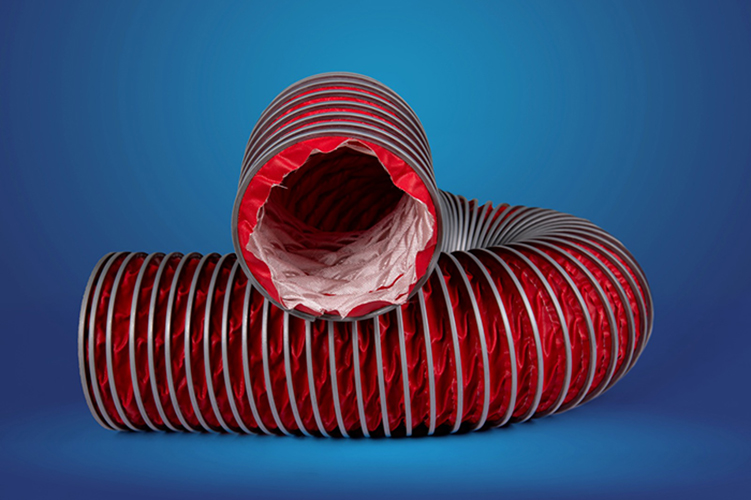

Silicone Clip Hose

Flexible High Temperature One Side Silicone Coated Fibreglass Fabric Hose made with Clip Wire outside Silicone Coated Fibreglass Fabric.
Material : Silicone Coated Fibre-glass Fabric with SS Wire. Fabric Thickness: 0.40mm Colour : Brick Red
Temperaure: - 50 to +310 Deg. Length: 5 Mtrs.
Diameter: 102mm to 600mm ID.

Silicone Spiral Hose made from one side coated Silicone Fibreglass Fabric Hose with Clipwire outside in 40mm distance. These are light weight and designed for maximum air flow and can be used with wide range of Blowers, Portable Evacuters, Fans, Fumes extraction etc., These hose can be used for both Exhaust as well as Blower application. Withstand temperature: -50 to +310 Deg.C. Piece Length: 4 to 5 Mtrs. Color: Brick Red. APPLICATION: Dehumidifiers, Aircraft, Aerospace, Vehicle and Engine Production, Car Heating and Hot dust extraction and designed for hot and cold air/fume application of both Positive and Negative Pressures.

Click Here

We also manufacture Light weight flexible hoses as per users specification and samples. We can also supply Aviation Ducts for Airconditioning Units on request.
